Windspeed Chart
HEIGHT DIAMETER WALL LENGTH SHIP UNFLAGGED WIND SPEED FLAGGED WIND SPEED
EXP LOA BUTT TOP THICK TAPRD STGHT SEC CONSTANT W/GUST FACTOR FLAG SIZE CONSTANT W/GUST FACTOR
20' 23'0" 4.0" 2.0" .125" 10'0" 13'0" 1 123 160 4'x6' 80 104
20' 23'0" 5.0" 3.0" .125" 11'8" 11'4" 1 193 250 4'x6' 100 130
25' 28'0" 5.0" 3.0" .156" 11'0" 17'0" 1 148 192 4'x6' 90 117
30' 33'0" 5.0" 3.0" .125" 17'3" 15'9" 1 or 2 81 105 5'x8' 60 78
30' 33'0" 5.0" 3.0" .156" 17'3" 15'9" 1 or 2 92 120 5'x8' 70 91
30' 33'0" 6.0" 3.5" .156" 17'3" 15'9" 1 or 2 147 191 5'x8' 90 117
35' 38'6" 5.0" 3.0" .156" 20'0" 18'6" 1 or 2 74 96 5'x8' 60 78
35' 38'6" 6.0" 3.5" .156" 20'0" 18'6" 1 or 2 94 122 5'x8' 70 91
35' 38'6" 7.0" 3.5" .156" 20'0" 18'6" 1 or 2 138 179 5'x8' 90 117
40' 44'0" 7.0" 3.5" .156" 22'9" 21'3" 2 96 125 6'x10' 70 91
50' 55'0" 8.0" 3.5" .188" 37'2" 17'10" 3 93 121 8'x12' 70 91
60' 66'0" 10.0" 4.0" .188" 44'6" 21'6" 3 100 130 10'x15' 70 91
60' 66'0" 10.0" 4.0" .250" 44'6" 21'6" 3 129 168 10'x15' 80 104
70' 77'0" 10.0" 4.0" .312" 52'0" 25'0" 3 106 137 12'x18' 70 91

Duranodic Flagpole Finishes
Light Bronze 311
Medium Bronze 312
Dark Bronze 313
Black 335
Ground Sleeve Installation
a.k.a. Ground Mount, Foundation Mount or Groundset
Ground mounted installations
Ground Mount
The embedded, or Groundset, mount is the method of choice for mounting aluminum flagpoles at grade. Flagpole shafts so mounted have a higher wind speed rating than the same shafts base-plate mounted.

Specifications:
2.3 A FOUNDATION TUBE: Fabricated from 16 ga. galvanized steel, with a steel base plate whose square dimension is at least the internal diameter of the sleeve plus 4''. A setting plate 6'' square shall be securely welded to the ground spike at least 6'' below the base plate. The ground spike shall be 3/4'' diameter, not less than 18'' long.

1. Provide spun aluminum collar, Type FC-11, finished to match flagpole shaft. Diameter shall be at least 1'' greater than diameter of sleeve.

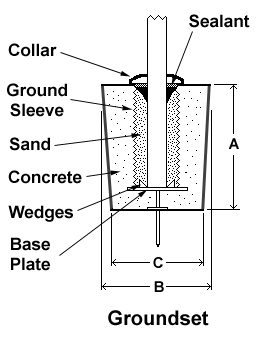

Ground Sleeve Specifications
Shaft Foundation Dimensions
HEIGHT
BUTT DIAMETER
SLEEVE DIAMETER
DEPTH A
DEPTH B
DEPTH C
20'
4"
6"
3' 6"
30"
24"
20'
5"
8"
3' 6"
30"
24"
25'
5"
8"
3' 6"
30"
24"
25'
5.5" - 6"
10"
3' 6"
30"
24"
30'
5"
8"
3' 6"
30"
24"
30'
6"
10"
3' 6"
30"
24"
35'
5"
8"
4' 0"
36"
30"
35'
6" - 7"
10"
4' 0"
36"
30"
40'
7"
10"
4' 6"
42"
36"
40'
8"
12"
4' 6"
42"
36"
45'
8"
12"
5' 0"
48"
42"
50'
8"
12"
5' 6"
48"
42"
50'
10"
15"
5' 6"
48"
42"
60'
10" - 12"
15"
6' 10"
48"
42"
70'
10" - 12"
15"
8' 0"
60"
48"
80'
12"
15"
9' 0"
60"
48"
